Process Behavior Charts can be used for more than tracking performance over time. In this post, I apply PBCs to compare knee surgeons' complication rates–and show why many apparent differences are just noise, not meaningful signals.
This post is a continuation of my last post that introduced the idea of using Process Behavior Charts (PBCs) for something other than time-series data (a metric or performance measure over time):
And be sure to check out my free webinar on December 18 (hosted by KaiNexus) titled:
How to Use Process Behavior Charts to Improve: Case Studies
In my last post, I used PBCs to compare different VA hospitals in a region. Today, I'll look at some data that compares the complication rates for different knee surgeons at two different hospitals in the Dallas / Fort Worth area.
Why Comparing Surgeons Is Harder Than It Looks
This data is from the ProPublica Surgeon Scorecard site.
The site tries to show the distribution of surgeons (and their complication rate performance) within a hospital with a visualization that might not really give a definitive answer, as colorful as it is:
Each black vertical line is a surgeon. The visualization implies that most of the surgeons at this one hospital have “medium” complication rates, and two are in the red, which says they have “high” complication rates.
What Rankings and Color Coding Get Wrong
Does that mean you should stay away from the “red surgeons?”
I don't know. The Low / Medium / High distinctions seem somewhat arbitrary.
And, each surgeon's adjusted complication rate isn't a specific hard number. It's more like political polling numbers, where there's a +/- margin of error with each number.
That's actually illustrated for each surgeon on the website:
The “confidence interval” for a surgeon shows they are yellow… but also possibly green and possibly red. Again, that doesn't seem super helpful or very fair to the surgeons who get labeled red.
I'd want to know if the differences in complication rates are meaningfully different or if they're just relatively small variations in performance. I'll compare the surgeons at a single hospital first since they are performing surgery in the same system… the same O.R.s, the same support staff, the same instrumental sterilization team, etc.

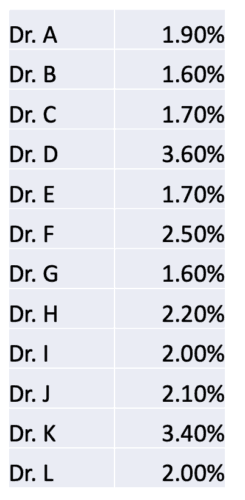

If we show the surgeons and their performance as a list of numbers (which doesn't show the confidence interval range), it might be hard to see if there's a meaningful difference (just as it was hard to see a difference in the VA hospitals last time).
What Process Behavior Charts Reveal That Rankings Miss
A Process Behavior Chart does a better job of separating signal from noise. I've alphabetized the list and replaced the surgeons' names with letters. A PBC can be helpful if we have any random order of surgeons here.
Dr. K has a rate that appears to be double that of Dr. C. Does that mean we should avoid Dr. K? Let's let the PBC tell us:
The PBC tells us that the difference between surgeons is just noise. There are no signals that indicate any surgeon's complication rates are outside of the norm of what that system is going to produce.
There's no point in praising or punishing different surgeons here. The differences in performance aren't indicative of a big difference in individual performance.
You might say, “But some complication rates are higher! They are clearly doing a bad job!”
It's sort of like the difference between a $13 glass of wine and a $12 glass of wine at a restaurant. The $13 glass is clearly more expensive… but it's not a significant price difference. And, it doesn't mean it's a better glass of wine (although “better” in that context is more subjective than surgical complications).
But if you read about the ProPublica methodology, there's some amount of estimating going on. That's why there's a confidence interval.
Comparing Surgeons Within a Different Hospital System
I looked next at surgeons at another hospital in the DFW area. Their average complication rate for that hospital was almost exactly the same as the first (they are working in part of the broader “system” that is “healthcare in the DFW area”).

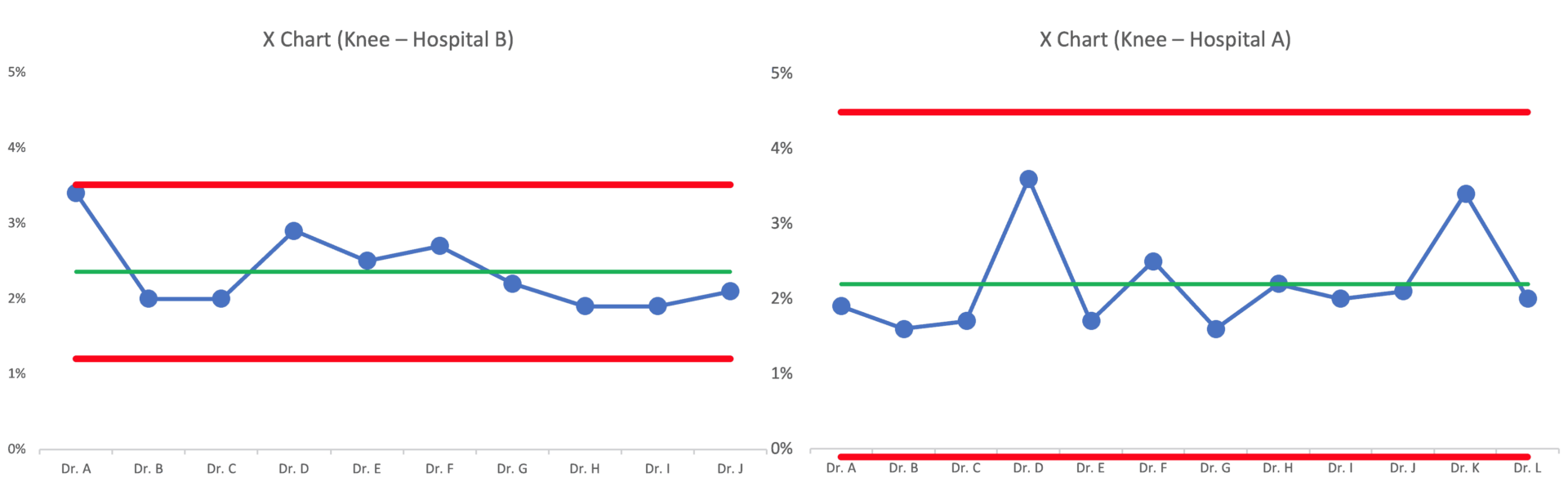

There's slightly less variation from surgeon to surgeon, but it also seems like there are no outliers amongst the surgeons at that hospital either:
Dr. A at Hospital B is almost an outlier in their system. Should that surgeon be avoided? Maybe?
If we randomize the order of the surgeons, the chart might look like this:
Why Punishing or Rewarding Surgeons Based on Noise Is Risky
Without a methodology that considers variation and the impact of the system, there's a real risk that surgeons will get rewarded or punished based on randomness. How often is so-called “pay for performance” really more like a “lottery,” as W. Edwards Deming might have referred to this?
Dr. A probably isn't significantly worse than the other surgeons.
If the average complication rate is about 2.2%, can it (should it) be improved? Sure!
But the answer won't be found in asking “why is that surgeon performing badly?” We need to improve the system — the system they all work in — the system that has a bigger impact on the results than individual skill or performance.
The Management Question Process Behavior Charts Help Us Answer
Process Behavior Charts filter out the noise, so we can find signals of meaningful difference — whether that's a time series metric or a comparison of hospitals or surgeons.
The real management question is not “Which surgeon is better?” but “What is this system capable of producing–and how do we improve it?”
Process Behavior Charts help leaders answer that question with discipline and fairness. They prevent us from mistaking routine variation for individual failure or success. They tell us when differences are just noise–and when there is a true signal that deserves investigation, learning, and action.
In this example, the charts make something uncomfortable but important clear: variation in complication rates is largely system-driven. Praising or punishing individual surgeons based on small differences risks creating fear, defensiveness, and gaming–without improving patient outcomes. If leaders want better results, the leverage point is the system surgeons work within: processes, staffing, equipment, scheduling, training, and support.
This is why reacting less matters. When leaders stop chasing explanations for noise, they create space to lead better–asking better questions, focusing improvement efforts where they matter, and reinforcing psychological safety rather than blame.
I explore this leadership shift in more depth in my book Measures of Success: React Less, Lead Better, Improve More, including practical examples of how Process Behavior Charts can be used to make smarter decisions in healthcare and beyond. When we manage with an understanding of variation, we improve not just metrics–but trust, learning, and performance over time.
In the next post in this series, I'll share an example of a comparison that DOES have a signal… and an apparent historical reason why there was a signal.
What do you think of this approach? Do you have data from your organization that you could apply a PBC to? What will you learn?
Check out all of the posts in the series.
